Vector Telecom為全球市場提供微波波導零件和組件，同軸組件和天線。
Vector Telecom由微波和毫米波實驗室，天線實驗室，微波和電子元件工廠組成。實驗室配備了高達110 GHz的先進微波測量設備。

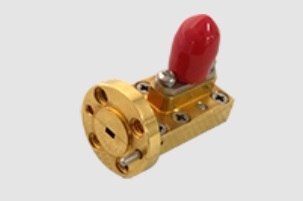

WG to Coaxial Adapter - Right Angle 型錄下載
|
WG to Coaxial Adapter - RightAngleProductRange
|
|
MODEL NO
|
FREQ RANGE
|
VSWR
|
FLANGE TYPE
|
CONNECTOR
|
MATERIAL
|
WG TYPE (IEC/EIA)
|
AVG POWER
|
|
|
|
(GHz)
|
Max
|
|
|
|
|
(W)
|
|
|
VT3WCANKPA
|
0.32-0.49
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R3/WR2300
|
100
|
|
|
VT4WCANKPA
|
0.35-0.53
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R4/WR2100
|
100
|
|
|
VT5WCANKPA
|
0.41-0.62
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R5/WR1800
|
100
|
|
|
VT6WCANKPA
|
0.49-0.75
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R6/WR1500
|
100
|
|
|
VT8WCANKPA
|
0.64-0.98
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R8/WR1150
|
100
|
|
|
VT9WCANKPA
|
0.75-1.15
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R9/WR975
|
100
|
|
|
VT12WCANKPA
|
0.96-1.46
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al
|
R12/WR770
|
100
|
|
|
VT14WCANKPA
|
1.13-1.73
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R14/WR650
|
100
|
|
|
VT18WCANKPA
|
1.45-2.20
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R18/WR510
|
100
|
|
|
VT22WCANKPA
|
1.72-2.61
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R22/WR430
|
100
|
|
|
VT26WCANKPA
|
2.17-3.30
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R26/WR340
|
100
|
|
|
VT32WCANKPA
|
2.60-3.95
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R32/WR284
|
100
|
|
|
VT40WCANKPA
|
3.22-4.90
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R40/WR229
|
100
|
|
|
VT48WCANKPA
|
3.94-5.99
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R48/WR187
|
100
|
|
|
VT48WCASKPA
|
3.94-5.99
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R48/WR187
|
50
|
|
|
VT58WCANKPC
|
4.64-7.05
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R58/WR159
|
100
|
|
|
VT58WCASKPC
|
4.64-7.05
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R58/WR159
|
50
|
|
|
VT70WCANKPC
|
5.38-8.17
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R70/WR137
|
100
|
|
|
VT70WCASKPC
|
5.38-8.17
|
1.25
|
FDP/FDM
|
Type N, SMA, TNC
|
Al/Cu
|
R70/WR137
|
50
|
|
|
VT84WCANKPC
|
6.57-9.99
|
1.25
|
FBP/FBE/FBM
|
Type N, SMA, TNC
|
Al/Cu
|
R84/WR112
|
100
|
|
|
VT84WCASKPC
|
6.57-9.99
|
1.25
|
FBP/FBE/FBM
|
Type N, SMA, TNC
|
Al/Cu
|
R84/WR112
|
50
|
|
|
VT100WCANKPC
|
8.20-12.50
|
1.25
|
FBP/FBE/FBM
|
Type N, SMA, TNC
|
Al/Cu
|
R100/WR90
|
100
|
|
|
VT100WCASKPC
|
8.20-12.50
|
1.25
|
FBP/FBE/FBM
|
Type N, SMA, TNC
|
Al/Cu
|
R100/WR90
|
50
|
|
|
VT120WCANKPC
|
9.84-15.0
|
1.25
|
FBP/FBM/FBE
|
Type N, SMA, TNC
|
Al/Cu
|
R120/WR75
|
100
|
|
|
VT120WCASKPC
|
9.84-15.0
|
1.25
|
FBP/FBM/FBE
|
Type N, SMA, TNC
|
Al/Cu
|
R120/WR75
|
50
|
|
|
VT140WCANKPC
|
11.9-18.0
|
1.25
|
FBP/FBM/FBE
|
Type N, SMA, TNC
|
Al/Cu
|
R140/WR62
|
100
|
|
|
VT140WCASKPC
|
11.9-18.0
|
1.25
|
FBP/FBM/FBE
|
Type N, SMA, TNC
|
Al/Cu
|
R140/WR62
|
50
|
|
|
VT180WCASKPC
|
14.5-22.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R180/WR51
|
30
|
|
|
VT220WCASKPC
|
17.6-26.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R220/WR42
|
30
|
|
|
VT220WCA2.92KPC
|
17.6-26.7
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R220/WR42
|
50
|
|
|
VT220WCA2.4KPC
|
17.6-26.7
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R220/WR42
|
30
|
|
|
VT260WCA2.92KPC
|
21.7-33.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R260/WR34
|
50
|
|
|
VT260WCA2.4KPC
|
21.7-33.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R260/WR34
|
30
|
|
|
VT260WCASKPC
|
21.7-33.0
|
1.4
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R260/WR34
|
50
|
|
|
VT320WCA2.92KPC
|
26.5-40.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R320/WR28
|
50
|
|
|
VT320WCA2.4KPC
|
26.5-40.0
|
1.25
|
FBP/FBE/FBM
|
SMA, K2.92mm, 2.4mm
|
Al/Cu
|
R320/WR28
|
30
|
|
|
VT400WCA2.4KPC
|
33.0-50.0
|
1.8
|
FUGP
|
2.4mm
|
Cu
|
R400/WR22
|
30
|
|
|
VT500WCA1.85KPC
|
40.0-50.0
|
2
|
FUGP
|
1.85mm
|
Cu
|
R500/WR19
|
10
|
|
|
VT620WCA1.85KPC
|
55.0-65.0
|
2
|
FUGP
|
1.85mm
|
Cu
|
R620/WR15
|
10
|
|
|
VT740WCA1.0KPC
|
66.0-86.0
|
2
|
FUGP
|
1.0mm
|
Cu
|
R740/WR12
|
10
|
|
|
VT900WCA1.0KPC
|
90.0-100.0
|
2
|
FUGP
|
1.0mm
|
Cu
|
R900/WR10
|
10
|
|
|
