Rectangle WG Straight

商品名稱:Rectangle WG Straight
商品編號:Rectangle WG Straight
產品說明:



  Vector Telecom為全球市場提供微波波導零件和組件,同軸組件和天線。
   Vector Telecom由微波和毫米波實驗室,天線實驗室,微波和電子元件工廠組成。實驗室配備了高達110 GHz的先進微波測量設備。


Rectangle WG Straight型錄下



Rectangle WG Straight Product Range

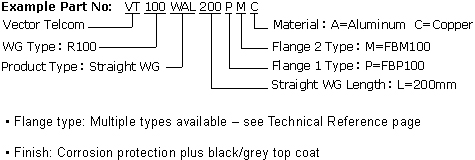

 MODEL NO

 FREQ RANGE

 VSWR

 FLANGE TYPE

 MATERIAL

 WG TYPE (IEC/EIA)

 LENGTH





(GHz)

Max







(mm)



VT3WAL1000PPA

0.32-0.49

1.15

FDP/FDM

Al

R3/WR2300

1000

VT4WAL1000PPA

0.35-0.53

1.15

FDP/FDM

Al

R4/WR2100

1000

VT5WAL1000PPA

0.41-0.62

1.15

FDP/FDM

Al

R5/WR1800

1000

VT6WAL1000PPA

0.49-0.75

1.15

FDP/FDM

Al

R6/WR1500

1000

VT8WAL1000PPA

0.64-0.98

1.1

FDP/FDM

Al

R8/WR1150

1000

VT9WAL1000PPA

0.75-1.15

1.1

FDP/FDM

Al

R9/WR975

1000

VT12WAL500PPA

0.96-1.46

1.05

FDP/FDM

Al

R12/WR770

500

VT14WAL500PPA

1.13-1.73

1.05

FDP/FDM

Al

R14/WR650

500

VT18WAL500PPA

1.45-2.20

1.05

FDP/FDM

Al

R18/WR510

500

VT22WAL300PPA

1.72-2.61

1.05

FDP/FDM

Al/Cu

R22/WR430

300

VT26WAL300PPA

2.17-3.30

1.05

FDP/FDM

Al/Cu

R26/WR340

300

VT32WAL200PPA

2.60-3.95

1.05

FDP/FDM

Al/Cu

R32/WR284

200

VT40WAL200PPA

3.22-4.90

1.05

FDP/FDM

Al/Cu

R40/WR229

200

VT48WAL200PPA

3.94-5.99

1.05

FDP/FDM

Al/Cu

R48/WR187

200

VT58WAL200PPA

4.64-7.05

1.05

FDP/FDM

Al/Cu

R58/WR159

200

VT70WAL100PPC

5.38-8.17

1.05

FDP/FDM

Al/Cu

R70/WR137

100

VT84WAL100PPC

6.57-9.99

1.05

FBP/FBM/FBE

Al/Cu

R84/WR112

100

VT100WAL100PPC

8.20-12.50

1.05

FBP/FBM/FBE

Al/Cu

R100/WR90

100

VT120WAL100PPC

9.84-15.0

1.05

FBP/FBM/FBE

Al/Cu

R120/WR75

100

VT140WAL100PPC

11.9-18.0

1.05

FBP/FBM/FBE

Al/Cu

R140/WR62

100

VT180WAL100PPC

14.5-22.0

1.05

FBP/FBM/FBE

Al/Cu

R180/WR51

100

VT220WAL50PPC

17.6-26.7

1.05

FBP/FBM/FBE

Al/Cu

R220/WR42

50

VT260WAL50PPC

21.7-33.0

1.05

FBP/FBM/FBE

Al/Cu

R260/WR34

50

VT320WAL50PPC

26.3-40.0

1.05

FBP/FBM/FBE

Al/Cu

R320/WR28

50

VT400WAL50PPC

32.9-50.1

1.1

FUGP

Cu

R400/WR22

50

VT500WAL50PPC

39.2-59.6

1.1

FUGP

Cu

R500/WR19

50

VT620WAL50PPC

49.8-75.8

1.1

FUGP

Cu

R620/WR15

50

VT740WAL50PPC

60.5-91.9

1.1

FUGP

Cu

R740/WR12

50

VT900WAL50PPC

73.8-112

1.1

FUGP

Cu

R900/WR10

50
