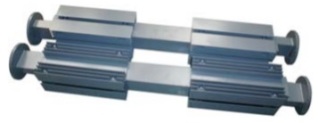

WG High Power Coupling Fixed AttenuatorProductRange

 MODEL NO

 FREQ RANGE

 VSWR

 FLANGE TYPE

 MATERIAL

 POWER HANDLING

 ATTENUATION***

 WG TYPE (IEC/EIA)

 AVG POWER

(GHz)

Max

(W)

(dB)

(W)

VT12WHPCFA

0.96-1.46

1.2

FDP/FDM

Al

10-4000

3-60

R12/WR770

10-4000

VT14WHPCFA

1.13-1.73

1.2

FDP/FDM

Al

10-4000

3-60

R14/WR650

10-4000

VT18WHPCFA

1.45-2.20

1.2

FDP/FDM

Al

10-4000

3-60

R18/WR510

10-4000

VT22WHPCFA

1.72-2.61

1.2

FDP/FDM

Al

10-4000

3-60

R22/WR430

10-4000

VT26WHPCFA

2.17-3.30

1.2

FDP/FDM

Al

10-4000

3-60

R26/WR340

10-4000

VT32WHPCFA

2.60-3.95

1.2

FDP/FDM

Al

10-4000

3-60

R32/WR284

10-4000

VT40WHPCFA

3.22-4.90

1.2

FDP/FDM

Al

10-4000

3-60

R40/WR229

10-4000

VT48WHPCFA

3.94-5.99

1.2

FDP/FDM

Al

10-4000

3-60

R48/WR187

10-4000

VT58WHPCFA

4.64-7.05

1.2

FDP/FDM

Al

10-4000

3-60

R58/WR159

10-4000

VT70WHPCFA

5.38-8.17

1.2

FDP/FDM

Cu

10-3000

3-60

R70/WR137

10-3000

VT84WHPCFA

6.57-9.99

1.2

FBP/FBM/FBE

Cu

10-3000

3-60

R84/WR112

10-3000

VT100WHPCFA

8.20-12.50

1.2

FBP/FBM/FBE

Cu

10-3000

3-60

R100/WR90

10-3000

VT120WHPCFA

9.84-15.0

1.2

FBP/FBM/FBE

Cu

10-3000

3-60

R120/WR75

10-3000

VT140WHPCFA

11.9-18.0

1.2

FBP/FBM/FBE

Cu

10-1000

3-60

R140/WR62

10-1000

VT180WHPCFA

14.5-22.0

1.2

FBP/FBM/FBE

Cu

10-1000

3-60

R180/WR51

10-1000

VT220WHPCFA

17.6-26.7

1.2

FBP/FBM/FBE

Cu

10-600

3-60

R220/WR42

10-600

VT260WHPCFA

21.7-33.0

1.2

FBP/FBM/FBE

Cu

10-600

3-60

R260/WR34

10-600

VT320WHPCFA

26.3-40.0

1.2

FBP/FBM/FBE

Cu

10-600

3-60

R320/WR28

10-600

VT400WHPCFA

32.9-50.1

1.2

FUGP

Cu

10-600

3-60

R400/WR22

10-600

VT500WHPCFA

39.2-59.6

1.25

FUGP

Cu

10-300

3-60

R500/WR19

10-300

VT620WHPCFA

49.8-75.8

1.25

FUGP

Cu

10-300

3-60

R620/WR15

10-300

VT740WHPCFA

60.5-91.9

1.25

FUGP

Cu

10-200

3-60

R740/WR12

10-200

VT900WHPCFA

73.8-112

1.25

FUGP

Cu

10-200

3-60

R900/WR10

10-200
