呈霖股份有限公司 CLEVER INFORMATION INC.

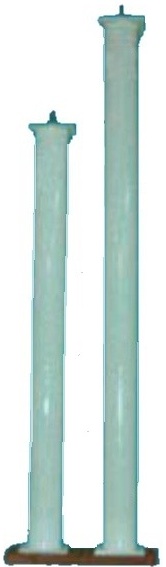

MMDS Transmitting Antenna Product Range

 MODEL NO

 FREQ RANGE

 VSWR

 GAIN

 POLARIZATION

 BEAMWIDTH(Azimuth)

 BEAMWIDTH(Elevation)

 DIMENSIONS (D*L)

 DIMENSIONS (A*B)

(GHz)

Max

(dB)

(°)

(°)

(mm)

(mm)

VT10400VOA12

1-40

1.5

11.5

Vertical

360

4.5

VT10400VOA16

1-40

1.5

13

Vertical

360

4

VT10400VOA20

1-40

1.5

14

Vertical

360

3.2

VT10400HOA12

1-40

1.5

11.5

Horizontal

360

4.5

VT10400HOA16

1-40

1.5

13

Horizontal

360

4

VT10400HOA20

1-40

1.5

14

Horizontal

360

3.2

VT10400VCA12

1-40

1.5

14.5

Vertical

180

4.5

VT10400VCA16

1-40

1.5

16

Vertical

180

4

VT10400VCA20

1-40

1.5

17

Vertical

180

3.2

VT10400HCA12

1-40

1.5

14.5

Horizontal

180

4.5

VT10400HCA16

1-40

1.5

16

Horizontal

180

4

VT10400HCA20

1-40

1.5

17

Horizontal

180

3.2

VT2527HOA10

2.5-2.7

1.5

10

Horizontal

360

6

130*1000

180*152

VT2527HOA12

2.5-2.7

1.5

12

Horizontal

360

5

130*1300

180*152

VT2527HOA16

2.5-2.7

1.5

13

Horizontal

360

4

130*1600

180*152

VT2527VOA10

2.5-2.7

1.5

10

Vertical

360

6

170*1000

220*180

VT2527VOA12

2.5-2.7

1.5

12

Vertical

360

5

170*1300

220*180

VT2527VOA16

2.5-2.7

1.5

13

Vertical

360

4

170*1600

220*180

VT2527HCA10

2.5-2.7

1.5

12

Horizontal

180

6

130*1000

180*152

VT2527HCA12

2.5-2.7

1.5

14

Horizontal

180

5

130*1300

180*152

VT2527HCA16

2.5-2.7

1.5

16

Horizontal

180

4

130*1600

180*152

VT2527VCA10

2.5-2.7

1.5

13

Vertical

180

6

170*1000

220*180

VT2527VCA12

2.5-2.7

1.5

14

Vertical

180

5

170*1300

220*180

VT2527VCA16

2.5-2.7

1.5

16

Vertical

180

4

170*1600

220*180
